Get to the experiment.

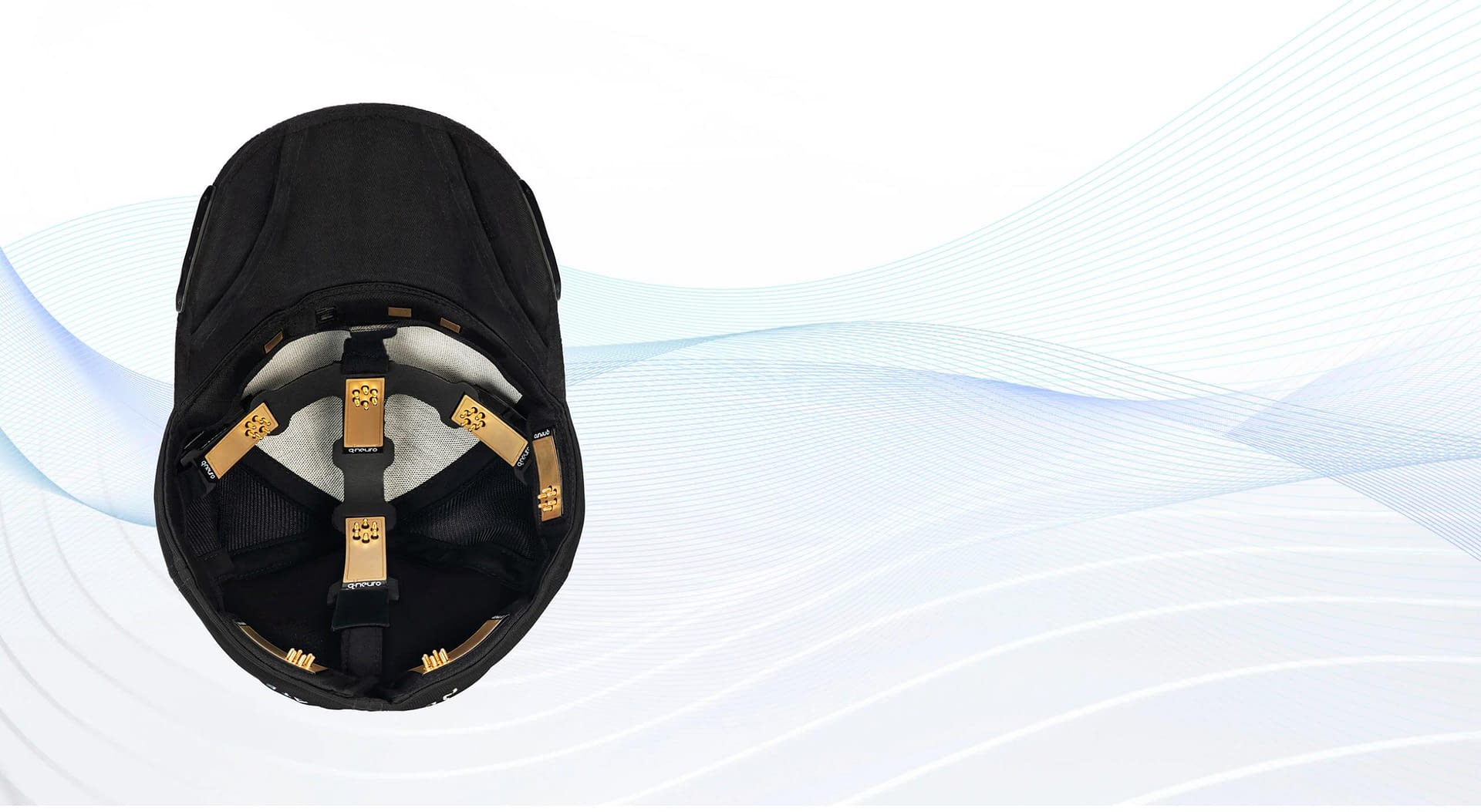

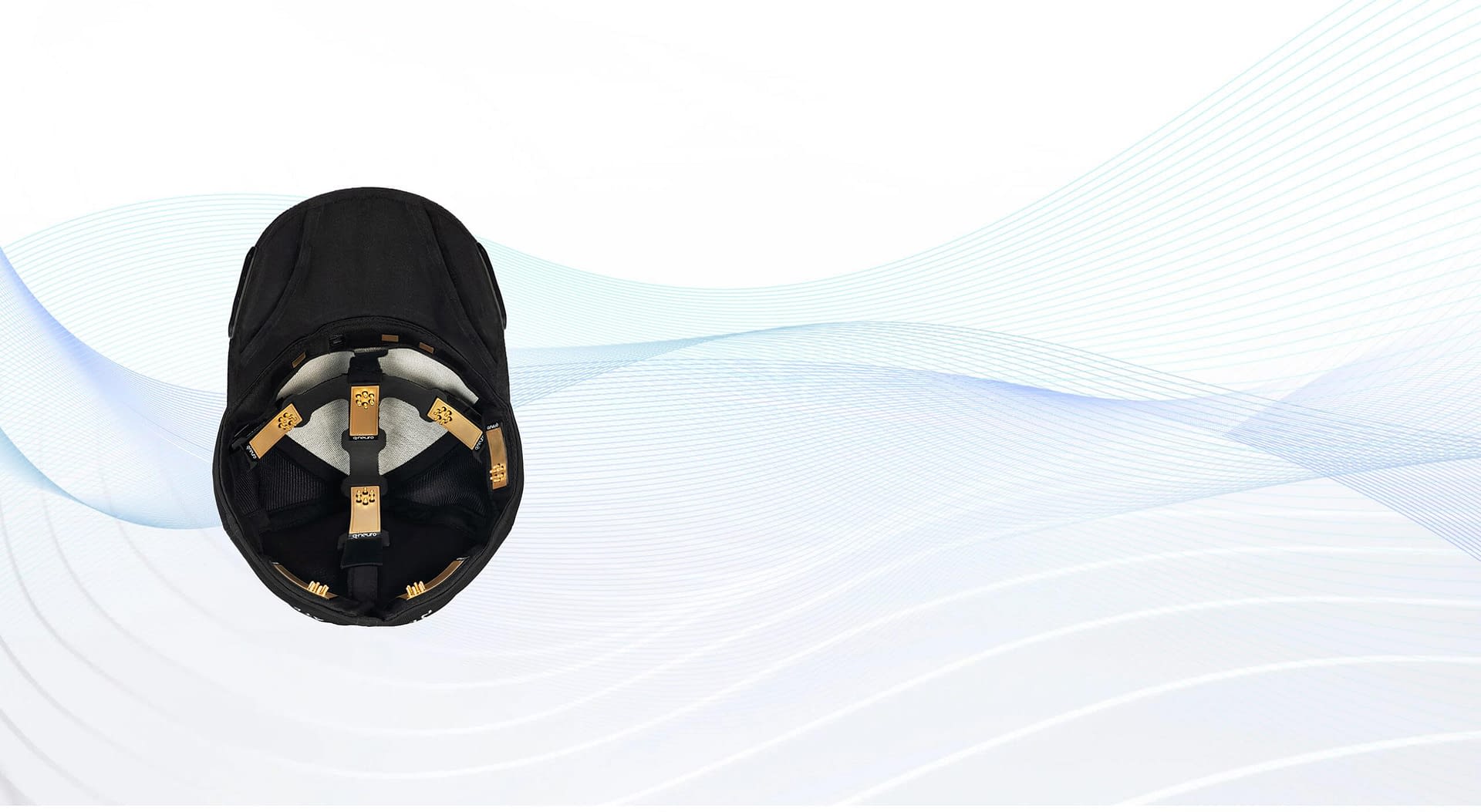

Gel-free hybrid electrodes simplify preparation and fit naturally into a wearable design.
H100 / RESEARCH EEG SYSTEM
Your next discovery
starts here.
An 8-channel wearable EEG device with gel-free hybrid electrodes, raw signal access and integrated PPG and IMU. Built for research institutions and developers in India.
WIRELESS · MULTIMODAL · RESEARCH-READY
Leave room to move.
Wireless acquisition supports laboratory and field studies, with artifact assessment suited to each protocol.
Work with your data.
Raw EEG, CSV export, Python SDK, MATLAB pipelines and LSL workflows support custom research.
THE DETAILS THAT MATTER
Technical specifications.
EEG montage: FP1, FP2, FC3, FC4, O1, O2, Cz and FPz. Reference: earlobe.
| EEG | 8 channels · 24-bit · 250 Hz |
|---|---|
| PPG | 2 channels (red & infrared) · 18-bit · 100 Hz |
| IMU | 9-axis · 16-bit · 100 Hz |
| Connectivity | Bluetooth 4.2 (Classic + LE) 2.4 GHz proprietary protocol |
| Battery | 1000 mAh Li-Po Approximately 4.5 hours runtime |
| Digital signal filter | 0.5–40 Hz · 0.51 µV LSB |
| Electrodes | Patented gel-free hybrid design |
Published hardware filter specifications and SDK preprocessing options describe different parts of the workflow. Confirm the configuration required for your study.
FROM SETUP TO INSIGHT
A familiar workflow.
A new research possibility.
- 01 / WEAR
Establish contact.
Fit H100 and check electrode contact and signal quality.
- 02 / CONNECT
Go wireless.
Connect to your supported research device via Bluetooth.
- 03 / STREAM
Access your data.
Stream raw EEG through the SDK or desktop LSL workflow.
- 04 / ANALYZE
Make it your own.
Work with Python, MATLAB or your preferred analysis tools.
SOFTWARE & INTEGRATION
Your tools.
Your analysis.
Build around raw EEG access, event markers and export workflows. Use Python, MATLAB examples or desktop LSL integration to connect H100 to your research environment.
Explore integration support
PLAN YOUR NEXT STUDY
Clear pricing.
A conversation tailored to your lab.
Prices shown in USD. Contact Qneuro for an India quotation and applicable taxes, shipping and institutional terms.
RESEARCH HARDWARE
H100
US$849
8-channel wearable EEG with integrated PPG and IMU.
Enquire about H100See technical specifications →RESEARCH SOFTWARE
NeuroAnalytics
US$499
One-year subscription. Discuss software capabilities and licensing for your research workflow.
Discuss software accessListed separately from H100 hardware.BEFORE YOUR FIRST STUDY
A few useful answers.
Does it need electrode gel?
H100 uses patented hybrid electrodes that require no gel. Hair can affect contact; part hair under the sensors and adjust the fit to improve signal quality.
Can I access raw EEG?
Yes. Raw EEG access is available in real time or via device logs. Research workflows support CSV export and desktop SDK LSL streams.
Is H100 a medical or diagnostic device?
No. H100 is intended for research and development, not medical diagnosis or clinical decision-making. Study design and institutional ethics requirements remain the researcher’s responsibility.
Do you accept university purchase orders?
Yes. Institutional and university purchase orders are supported. Contact the team for a quotation and your procurement requirements.
What warranty and onboarding are available?
The published support information lists a one-year limited warranty for manufacturing defects. Optional onboarding, lab integration support and analysis consultation are available; ask for the relevant terms.
H100 is a non-medical device intended for research and development.
